A Web-enabled, Monad front end: Monad hosting.

Fri, Jun 17, 2005 3-minute read

Preston wrote a piece, pointing to an interesting Web application called “WebCmd”. WebCmd makes your browser act like a console window. You type in commands, it executes them on a remote server, and returns the results. Currently, a-i-studio accomplishes the web-based interactivity via Javascript, with the heavy lifting performed by a server-side Perl script that executes commands.

It’s a neat idea, and leads to even better ones (as Preston pointed out.) If we could have a fully-functioning web terminal over SSL, who needs SSH? In addition, who needs to worry about having access to a terminal emulator in order to securely administer thier machine? Although it appears that this demo gets us 90% of the way to running VI, it’s really more like 0.01%

Like I said earlier, WebCmd makes the front end appear to be responsive using Javascript. You see characters as you type them, you can backspace, and you see a flashing cursor (for a few examples.) However, no interaction with the remote machine actually happens until you press the ‘Enter’ key. At that point, WebCmd batches your input and sends it off to the server. Then, it collects the response and displays it for you.

This falls quite short of the infrastructure required to support an interactive program such as VI. Let alone Emacs :)  There’s no support for cursor positioning, keyboard polling, and much more. For the Unix world, take a gander at the feature set of the VT100 Terminal Emulation Requirements. For the Windows world, look at the Win32 Console API. To make a fully interactive web-enabled front-end, you would need to implement the equivalent of cmd.exe in Javascript. The performance would be atrocious. So in the end, it’s attainable – but at a very large cost. Once you’re done writing that much Javascript, you’re likely to start rocking back and forth, whilst arguing with yourself.

However, all is not lost. If we drop the requirement (and support) for the high-degree interactivity, a web-enabled front end does become a useful administration utility. SSL secures the data in transport, and protects you from man-in-the-middle attacks. By using Windows authentication (along with the appropriate permission sets on the server,) you can even prevent users from doing things they shouldn’t.

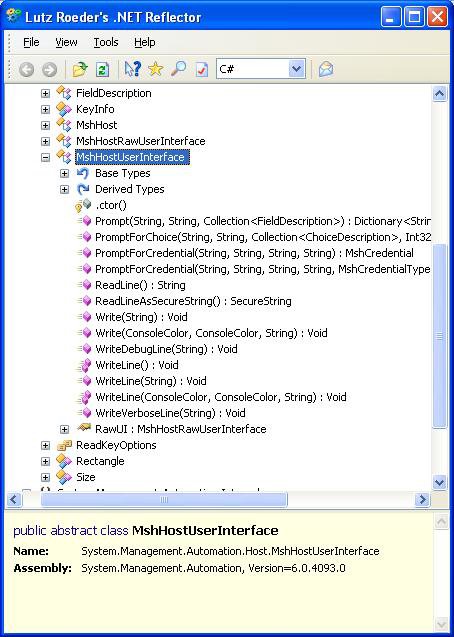

This is a scenario that Monad allows you to accomplish much more cleanly than simply redirecting standard input and output from a console application. At its core, we’ve designed the Monad engine to be hosted by other applications. As long as the host application implements the functions from the hosting interface (below,) it can run and host most Monad cmdlets.

For example, our MSH.EXE is simply a host for Monad. Several enthusiastic members on BetaPlace have written a GUI host for Monad. Exchange 12 is built on Monad. And to bring this all full circle: one of the members in our team wrote a proof-of-concept ASP.Net host for Monad.

[Edit: Monad has now been renamed to Windows PowerShell. This script or discussion may require slight adjustments before it applies directly to newer builds.]
